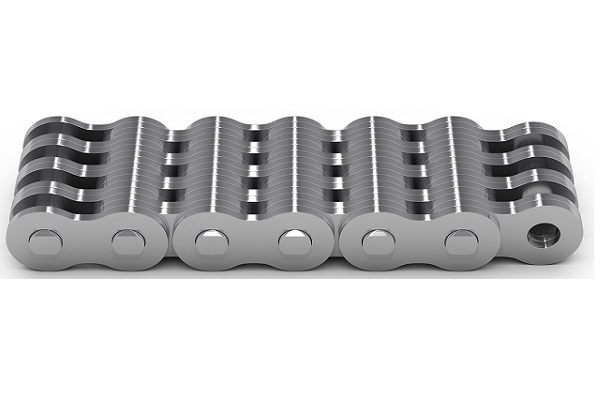

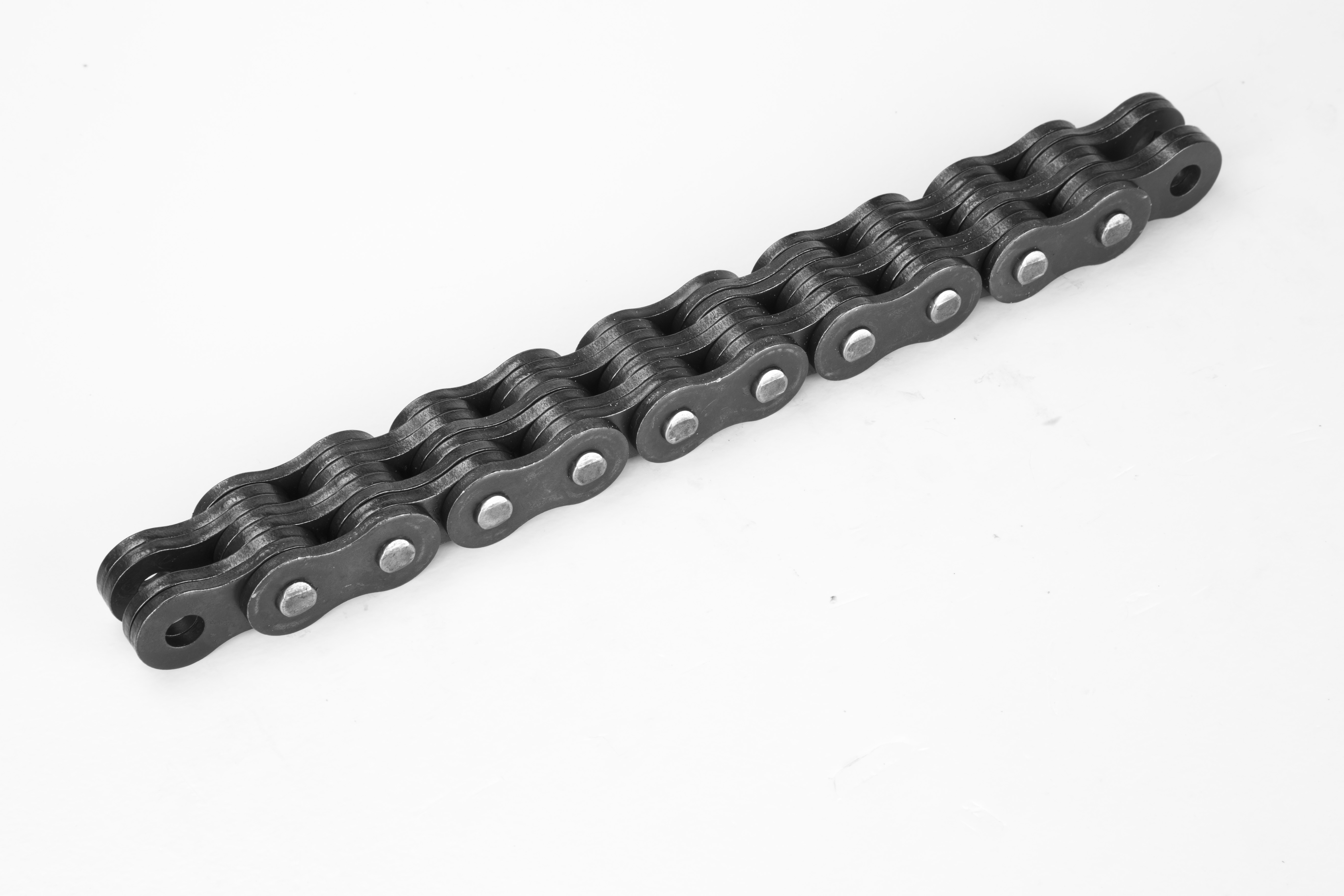

| ANSI No | Pitch | Plate Structure | Plate Details | Pin Detials | Tensile Strength | Average Tensile Strength | Gross Weight | ||
| Thickness | Width | diameter | Length | ||||||
| P(mm) | T(mm) | W(mm) | mm | L(mm) | Kn | Kn | kg/m | ||
| AL322 | 9.53 | 2x2 | 1.30 | 7.70 | 3.58 | 6.80 | 9.00 | 10.20 | 0.23 |
| AL344 | 9.53 | 4x4 | 1.30 | 7.70 | 3.58 | 11.60 | 18.00 | 20.00 | 0.46 |
| AL422 | 12.70 | 2x2 | 1.50 | 10.40 | 3.96 | 8.30 | 14.10 | 16.90 | 0.39 |
| AL444 | 12.70 | 4x4 | 1.50 | 10.40 | 3.96 | 14.40 | 28.20 | 35.20 | 0.74 |
| AL466 | 12.70 | 6x6 | 1.50 | 10.40 | 3.96 | 20.50 | 42.30 | 52.70 | 1.13 |
| AL522 | 15.88 | 2x2 | 2.00 | 12.80 | 5.80 | 11.05 | 22.00 | 27.50 | 0.64 |
| AL534 | 15.88 | 3x4 | 2.00 | 12.80 | 5.80 | 17.00 | 33.00 | 46.00 | 1.10 |
| AL544 | 15.88 | 4x4 | 2.00 | 12.80 | 5.80 | 19.40 | 44.00 | 55.00 | 1.25 |
| AL566 | 15.88 | 6x6 | 2.00 | 12.80 | 5.80 | 27.50 | 66.00 | 82.50 | 1.79 |
| AL622 | 19.05 | 2x2 | 2.40 | 15.60 | 5.94 | 13.00 | 37.00 | 44.40 | 0.86 |
| AL644 | 19.05 | 4x4 | 2.40 | 15.60 | 5.94 | 22.70 | 63.70 | 78.80 | 1.76 |
| AL666 | 19.05 | 6x6 | 2.40 | 15.60 | 5.94 | 32.20 | 100.10 | 118.60 | 2.60 |
| AL688 | 19.05 | 8x8 | 2.40 | 15.60 | 5.94 | 42.20 | 133.40 | 156.60 | 3.49 |
| AL822 | 25.40 | 2x2 | 3.20 | 20.50 | 7.92 | 16.00 | 56.70 | 68.60 | 1.54 |
| AL844 | 25.40 | 4x4 | 3.20 | 20.50 | 7.92 | 29.40 | 113.40 | 135.60 | 3.00 |
| AL866 | 25.40 | 6x6 | 3.20 | 20.50 | 7.92 | 44.20 | 170.00 | 202.30 | 4.46 |
| AL1022 | 31.75 | 2x2 | 4.00 | 25.60 | 9.53 | 19.60 | 88.50 | 107.10 | 2.37 |
| AL1044 | 31.75 | 4x4 | 4.00 | 25.60 | 9.53 | 36.40 | 177.00 | 203.60 | 4.68 |
| AL1066 | 31.75 | 6x6 | 4.00 | 25.60 | 9.53 | 52.30 | 265.00 | 315.30 | 7.20 |
| AL1088 | 31.75 | 8x8 | 4.00 | 25.60 | 9.53 | 68.50 | 354.00 | 421.20 | 9.94 |
| AL1222 | 38.10 | 2x2 | 4.80 | 30.50 | 11.10 | 24.30 | 127.00 | 151.10 | 3.65 |
| AL1244 | 38.10 | 4x4 | 4.80 | 30.50 | 11.10 | 43.80 | 254.00 | 299.70 | 7.05 |
| AL1266 | 38.10 | 6x6 | 4.80 | 30.50 | 11.10 | 63.20 | 381.00 | 426.30 | 10.50 |
| AL1288 | 38.10 | 8x8 | 4.80 | 30.50 | 11.10 | 82.60 | 508.00 | 568.40 | 14.03 |
| AL1444 | 44.45 | 4x4 | 5.60 | 36.40 | 12.64 | 51.30 | 372.70 | 413.60 | 10.34 |
| AL1466 | 44.45 | 6x6 | 5.60 | 36.40 | 12.64 | 74.56 | 559.00 | 620.40 | 15.16 |
| AL1644 | 50.80 | 4x4 | 6.40 | 41.60 | 14.21 | 58.00 | 471.00 | 522.80 | 12.98 |
| AL1666 | 50.80 | 6x6 | 6.40 | 41.60 | 14.21 | 83.80 | 706.00 | 783.60 | 19.76 |
| AL1688 | 50.80 | 8x8 | 6.40 | 41.60 | 14.21 | 109.50 | 942.00 | 1045.50 | 25.47 |
