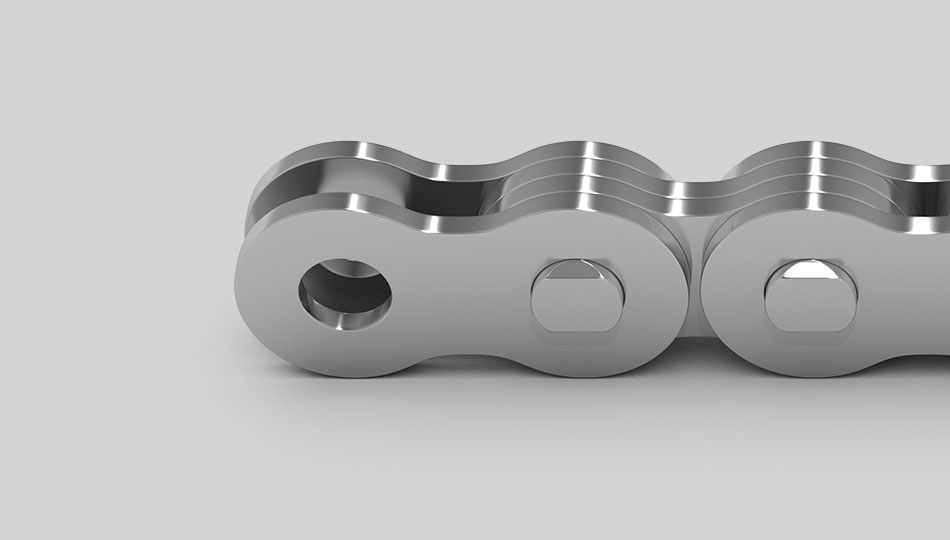

ANSI No | Pitch | Plate Structure | Plate Details | Pin Detials | Tensile Strength | Average Tensile Strength | Gross Weight | ||
Thickness | Width | diameter | Length | ||||||
P(mm) | T(mm) | W(mm) | mm | L(mm) | Kn | Kn | kg/m | ||
LL0822 | 12.70 | 2x2 | 1.60 | 10.60 | 4.45 | 7.60 | 17.80 | 20.40 | 0.35 |
LL0844 | 12.70 | 4x4 | 1.60 | 10.60 | 4.45 | 15.60 | 36.40 | 40.70 | 0.84 |
LL0866 | 12.70 | 6x6 | 1.60 | 10.60 | 4.45 | 18.20 | 44.50 | 50.90 | 1.00 |
LL0888 | 12.70 | 8x8 | 1.60 | 10.60 | 4.45 | 23.60 | 62.20 | 71.20 | 1.33 |
LL1022 | 15.88 | 2x2 | 1.70 | 13.70 | 5.08 | 9.20 | 22.30 | 25.50 | 0.54 |
LL1044 | 15.88 | 4x4 | 1.70 | 13.70 | 5.08 | 15.80 | 44.50 | 51.00 | 1.06 |
LL1066 | 15.88 | 6x6 | 1.70 | 13.70 | 5.08 | 22.10 | 66.70 | 76.30 | 1.57 |
LL1088 | 15.88 | 8x8 | 1.70 | 13.70 | 5.08 | 28.80 | 89.00 | 101.90 | 2.10 |
LL1222 | 19.05 | 2x2 | 1.85 | 16.00 | 5.72 | 10.40 | 28.90 | 33.20 | 0.73 |
LL1244 | 19.05 | 4x4 | 1.85 | 16.00 | 5.72 | 17.90 | 57.80 | 66.40 | 1.44 |
LL1266 | 19.05 | 6x6 | 1.85 | 16.00 | 5.72 | 25.40 | 86.70 | 99.70 | 2.15 |
LL1288 | 19.05 | 8x8 | 1.85 | 16.00 | 5.72 | 32.90 | 115.60 | 132.90 | 2.84 |
LL1622 | 25.40 | 2x2 | 3.10 | 21.00 | 8.28 | 17.20 | 58.00 | 66.70 | 1.52 |
LL1644 | 25.40 | 4x4 | 3.10? | 21.00 | 8.28 | 29.60 | 116.00 | 140.00 | 2.90 |
LL1666 | 25.40 | 6x6 | 3.10? | 21.00 | 8.28 | 42.40 | 174.00 | 208.80 | 4.30 |
LL1688 | 25.40 | 8x8 | 3.10 | 21.00 | 8.28 | 54.90 | 232.00 | 278.00 | 5.71 |
LL2022 | 31.75 | 2x2 | 3.50 | 26.40 | 10.19 | 20.10 | 95.00 | 109.20 | 2.33 |
LL2044 | 31.75 | 4x4 | 3.50 | 26.40 | 10.19 | 33.80 | 190.00 | 218.50 | 4.40 |
LL2066 | 31.75 | 6x6 | 3.50 | 26.40 | 10.19 | 50.10 | 285.00 | 324.60 | 6.79 |
LL2088 | 31.75 | 8x8 | 3.50 | 26.40 | 10.19 | 64.00 | 380.00 | 435.10 | 8.90 |
LL2422 | 38.10 | 2x2 | 4.80 | 33.40 | 14.63 | 28.40 | 170.00 | 195.50 | 4.47 |
LL2444 | 38.10 | 4x4 | 4.80 | 33.40 | 14.63 | 46.30 | 340.00 | 380.80 | 8.22 |
LL2466 | 38.10 | 6x6 | 4.80 | 33.40 | 14.63 | 66.40 | 510.00 | 571.20 | 12.22 |
LL2488 | 38.10 | 8x8 | 4.80 | 33.40 | 14.63 | 86.60 | 680.00 | 775.20 | 16.30 |
LL2822 | 44.45 | 2x2 | 6.00 | 37.08 | 15.90 | 32.20 | 200.00 | 224.00 | 5.10 |
LL2844 | 44.45 | 4x4 | 6.00 | 37.08 | 15.90 | 56.40 | 400.00 | 448.00 | 9.90 |
LL2866 | 44.45 | 6x6 | 6.00 | 37.08 | 15.90 | 80.80 | 600.00 | 672.00 | 14.60 |
LL2888 | 44.45 | 8x8 | 6.00 | 37.08 | 15.90 | 105.20 | 800.00 | 896.00 | 19.40 |
LL3222 | 50.80 | 2x2 | 6.00 | 42.00 | 17.81 | 33.20 | 260.00 | 291.20 | 5.80 |
LL3244 | 50.80 | 4x4 | 6.00 | 42.00 | 17.81 | 56.60 | 520.00 | 582.40 | 12.30 |
LL3266 | 50.80 | 6x6 | 6.00 | 42.00 | 17.81 | 80.80 | 780.00 | 873.60 | 18.30 |
LL3288 | 50.80 | 8x8 | 6.00 | 42.00 | 17.81 | 105.00 | 1050.00 | 1176.00 | 24.00 |
