  • BL834 Leaf Chain
  • BL834 Leaf Chain
BL834 Leaf Chain BL834 Leaf Chain

BL834 Leaf Chain

  • BL834 Leaf Chain
  • Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
  • Leaf chain BL834. BL834  leaf chain has a tensile strength of 154.50kN.
  • EMAIL   INQUIRY

BL834 Leaf Chain


Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
Leaf chain BL834. BL834  leaf chain has a tensile strength of 154.50kN.

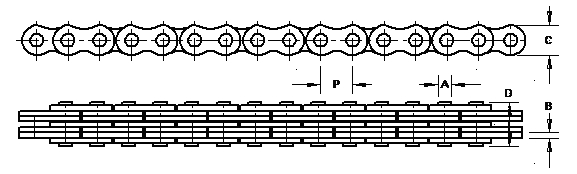

Diagram of BL834
Image of BL834




Pitch PPin Diameter APlate Thickness BPlate Depth CPin Length DWeightBreaking StrengthBreaking Strength
Metric25.40mm9.53mm4.09mm24.10mm32.90mm4.37kg/m15750kg154.50kN
Imperial1“0.375“0.161“0.949“1.296“2.937lbs/ft34713lbs
LacingLacing StyleISO Standard (kN)Maximum working load (kg)ISO Standard Number
3 x 431292835kgLH1634
