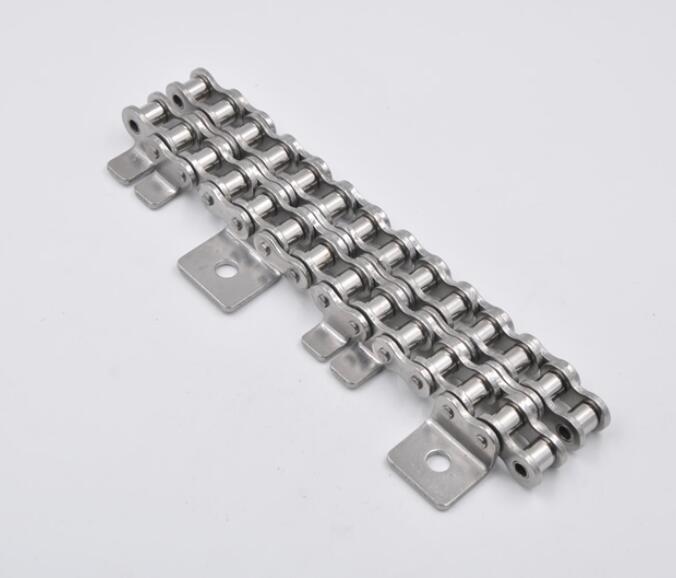

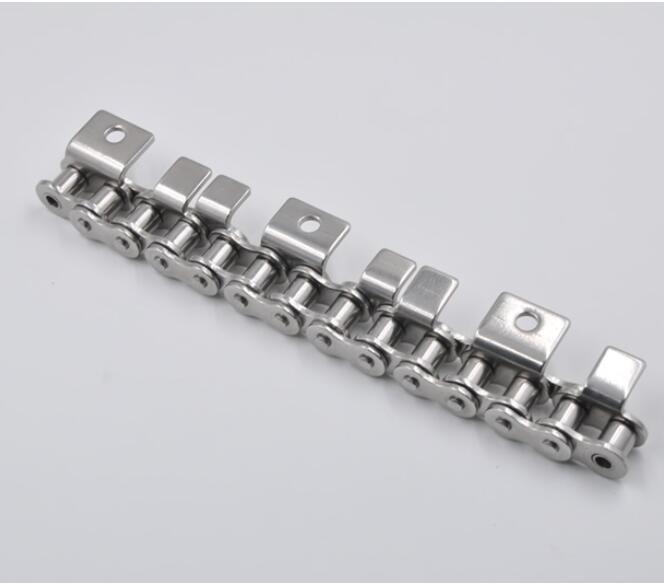

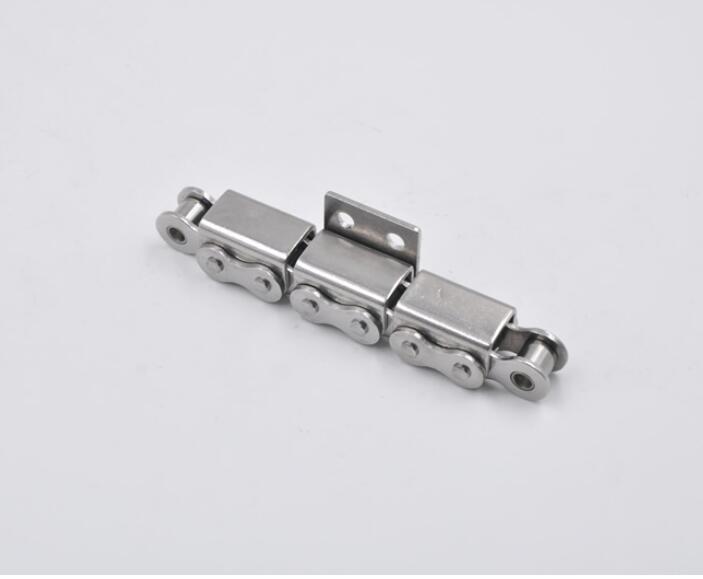

| Double Pitch Conveyor Chain with Standard Attachment | |||||||||
| ISO/DIN Chain No. | ANSI Chain No. | P | G | L | C1 | C2 | F | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| C208A | C2040 | 25.4 | 19.1 | 9.5 | 11.1 | 13.5 | 20.5 | 3.5 | 5.5 |
| C208AL | C2042 | 25.4 | 19.1 | 9.5 | 11.1 | 13.5 | 20.5 | 3.5 | 5.5 |
| C210A | C2050 | 31.75 | 23.8 | 11.9 | 14.3 | 15.9 | 25 | 5.5 | 6.6 |
| C210AL | C2052 | 31.75 | 23.8 | 11.9 | 14.3 | 15.9 | 25 | 5.5 | 6.6 |
| C212A | C2060 | 38.1 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C212AL | C2062 | 38.1 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C212AH | C2060H | 38.1 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C212AHL | C2062H | 38.1 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C216A | C2080 | 50.8 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11 |
| C216AL | C2082 | 50.8 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11 |
| C216AH | C2080H | 50.8 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11 |
| C216AHL | C2082H | 50.8 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11 |
| C220A | C2100 | 63.5 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13 |
| C220AL | C2102 | 63.5 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13 |
| C220AH | C2100H | 63.5 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13 |
| C220AHL | C2102H | 63.5 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13 |
| Double Pitch Conveyor Chain with Extended Pin | |||||||||
| ISO/DIN Chain No. | ANSI Chain No. | P | b1 | d2 | L3 | L | Lc | ||
| mm | mm | mm | mm | mm | mm | ||||
| C208A | C2040 | 25.04 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 | ||
| C208AL | C2042 | 25.04 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 | ||
| C210A | C2050 | 31.75 | 9.4 | 5.08 | 11.9 | 31.3 | 33.1 | ||
| C210AL | C2052 | 31.75 | 9.4 | 5.08 | 11.9 | 31.3 | 33.1 | ||
| C212A | C2060 | 38.1 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 | ||
| C212AL | C2062 | 38.1 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 | ||
| C212AH | C2060H | 38.1 | 12.57 | 5.94 | 14.3 | 42 | 43.8 | ||
| C212AHL | C2062H | 38.1 | 12.57 | 5.94 | 14.3 | 42 | 43.8 | ||
| C216A | C2080 | 50.8 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 | ||
| C216AL | C2082 | 50.8 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 | ||
| C216AH | C2080H | 50.8 | 15.75 | 7.92 | 19.1 | 53.5 | 55 | ||
| C216AHL | C2082H | 50.8 | 15.75 | 7.92 | 19.1 | 53.5 | 55 | ||
| C220A | C2100 | 63.5 | 18.9 | 9.53 | 23.8 | 61.8 | 66.1 | ||
| C220AL | C2102 | 63.5 | 18.9 | 9.53 | 23.8 | 61.8 | 66.1 | ||
| C220AH | C2100H | 63.5 | 18.9 | 9.53? | 23.8 | 65 | 68.3 | ||
| C220AHL | C2102H | 63.5 | 18.9 | 9.53 | 23.8 | 65 | 68.3 | ||
| C224AH | C2120H | 76.2 | 25.22 | 11.1 | 28.6 | 79.6 | 83.6 | ||
| C224AHL | C2122H | 76.2 | 25.22 | 11.1 | 28.6 | 79.6 | 83.6 | ||
| C232AH | C2160H | 101.6 | 31.75 | 14.27 | 38.1 | 103 | 107.8 | ||
| C232AHL | C2162H | 101.6 | 31.75 | 14.27 | 38.1 | 103 | 107.8 | ||
