CRC leaf chain manufacturing is focused on imperial pitch leaf chains that include BL (LH) series chains (International Standards ISO4347, DIN8152, ANSI B29.8 & NFE26107); AL series chains (ANSI B29.8); and EL (LL) series chains (ISO4347, DIN8152 & NFE26107).

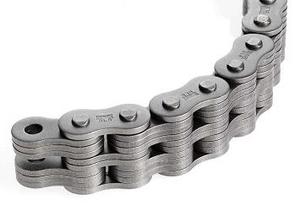

Leaf Chain is the most simple of steel chains, consisting only of link plates and pins. This chain generally has greater tensile strength than roller chains and runs over sheaves rather than sprockets. They are suitable for hanging, balancing or motion transmitting applications. Leaf chains are often used as counterweight chains for machine tools, elevator and oven doors, fork lift truck masts, spinning frames and similar lifting or balancing applications.

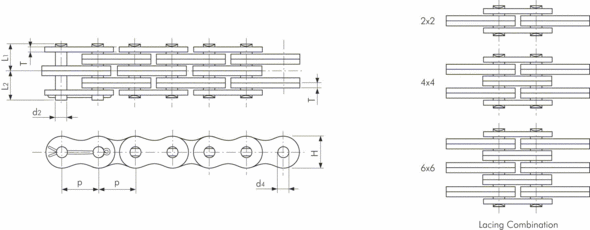

2x2 Lacing
4x4 Lacing
6x6 Lacing
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| AL422 | 12.70 | 1/2" | 2x2 |
| AL522 | 15.875 | 5/8" | 2x2 |
| AL622 | 19.05 | 3/4" | 2x2 |
| AL822 | 25.40 | 1" | 2x2 |
| AL1022 | 31.75 | 1 1/4" | 2x2 |
| AL1222 | 38.10 | 1 1/2" | 2x2 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| AL422 | 3.97 | 4.20 | 5.30 | 1.50 | 10.40 | 4.02 | 16.7 | 0.38 |
| AL522 | 5.08 | 5.43 | 6.97 | 2.00 | 13.00 | 5.13 | 27.5 | 0.62 |
| AL622 | 5.94 | 6.33 | 8.22 | 2.40 | 15.60 | 6.00 | 38.2 | 0.87 |
| AL822 | 7.90 | 8.18 | 10.97 | 3.20 | 20.80 | 7.97 | 64.7 | 1.51 |
| AL1022 | 9.48 | 10.03 | 13.22 | 4.00 | 26.00 | 9.57 | 98.1 | 2.69 |
| AL1222 | 11.04 | 12.10 | 15.80 | 4.80 | 31.20 | 11.14 | 141.0 | 3.57 |
For more detailed information regarding clevises and sheaves, please contact
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| AL444 | 12.70 | 1/2" | 4x4 |
| AL544 | 15.875 | 5/8" | 4x4 |
| AL644 | 19.05 | 3/4" | 4x4 |
| AL844 | 25.40 | 1" | 4x4 |
| AL1044 | 31.75 | 1 1/4" | 4x4 |
| AL1244 | 38.10 | 1 1/2" | 4x4 |
| AL1444 | 44.45 | 1 3/4" | 4x4 |
| AL1644 | 50.80 | 2" | 4x4 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| AL444 | 3.97 | 7.43 | 8.52 | 1.50 | 10.40 | 4.02 | 33.3 | 0.74 |
| AL544 | 5.08 | 9.68 | 11.22 | 2.00 | 13.00 | 5.13 | 54.9 | 1.22 |
| AL644 | 5.94 | 11.28 | 13.17 | 2.40 | 15.60 | 6.00 | 76.5 | 1.71 |
| AL844 | 7.90 | 14.90 | 17.70 | 3.20 | 20.80 | 7.97 | 129.0 | 2.98 |
| AL1044 | 9.48 | 18.35 | 21.55 | 4.00 | 26.00 | 9.57 | 196.0 | 5.31 |
| AL1244 | 11.04 | 22.00 | 25.70 | 4.80 | 31.20 | 11.14 | 282.0 | 7.07 |
| AL1444 | 12.64 | 25.65 | 30.15 | 5.60 | 36.40 | 12.74 | 373.0 | 10.34 |
| AL1644 | 14.21 | 29.03 | 34.02 | 6.40 | 41.60 | 14.32 | 471.0 | 12.98 |
For more detailed information regarding clevises and sheaves, please contact
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| AL466 | 12.70 | 1/2" | 6x6 |
| AL566 | 15.875 | 5/8" | 6x6 |
| AL666 | 19.05 | 3/4" | 6x6 |
| AL866 | 25.40 | 1" | 6x6 |
| AL1066 | 31.75 | 1 1/4" | 6x6 |
| AL1266 | 38.10 | 1 1/2" | 6x6 |
| AL1466 | 44.45 | 1 3/4" | 6x6 |
| AL1666 | 50.80 | 2" | 6x6 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| AL466 | 3.97 | 10.65 | 11.75 | 1.50 | 10.40 | 4.02 | 50.5 | 1.10 |
| AL566 | 5.08 | 13.90 | 15.45 | 2.00 | 13.00 | 5.13 | 82.4 | 1.81 |
| AL666 | 5.94 | 16.23 | 18.12 | 2.40 | 15.60 | 6.00 | 115.0 | 2.54 |
| AL866 | 7.90 | 21.60 | 24.40 | 3.20 | 20.80 | 7.97 | 194.0 | 4.44 |
| AL1066 | 9.48 | 26.65 | 29.85 | 4.00 | 26.00 | 9.57 | 294.0 | 7.93 |
| AL1266 | 11.04 | 31.93 | 35.62 | 4.80 | 31.20 | 11.14 | 424.0 | 10.65 |
| AL1466 | 12.64 | 37.28 | 41.77 | 5.60 | 36.40 | 12.74 | 559.0 | 15.16 |
| AL1666 | 14.21 | 42.23 | 47.22 | 6.40 | 41.60 | 14.32 | 706.0 | 19.41 |
For more detailed information regarding clevises and sheaves, please contact CRC

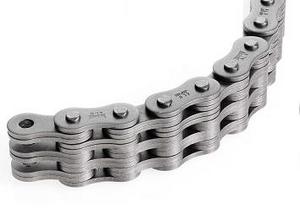

Leaf Chain is the most simple of steel chains, consisting only of link plates and pins. This chain generally has greater tensile strength than roller chains and runs over sheaves rather than sprockets. They are suitable for hanging, balancing or motion transmitting applications. Leaf chains are often used as counterweight chains for machine tools, elevator and oven doors, fork lift truck masts, spinning frames and similar lifting or balancing applications.

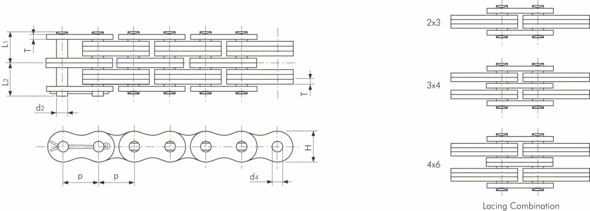

2x2 Lacing
2x3 Lacing
3x4 Lacing
4x4 Lacing
4x6 Lacing
6x6 Lacing
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL422 | 12.70 | 1/2" | 2x2 |
| BL522 | 15.875 | 5/8" | 2x2 |
| BL622 | 19.05 | 3/4" | 2x2 |
| BL822 | 25.40 | 1" | 2x2 |
| BL1022 | 31.75 | 1 1/4" | 2x2 |
| BL1222 | 38.10 | 1 1/2" | 2x2 |
| BL1422 | 44.45 | 1 3/4" | 2x2 |
| BL1622 | 50.80 | 2" | 2x2 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL422 | 5.08 | 5.44 | 6.99 | 2.00 | 12.00 | 5.13 | 23.5 | 0.68 |
| BL522 | 5.94 | 6.32 | 8.23 | 2.40 | 15.00 | 6.00 | 39.2 | 1.07 |
| BL622 | 7.90 | 8.20 | 11.02 | 3.20 | 18.10 | 7.97 | 63.7 | 1.68 |
| BL822 | 9.48 | 10.08 | 13.28 | 4.00 | 24.10 | 9.57 | 103.0 | 2.59 |
| BL1022 | 11.04 | 11.99 | 15.67 | 4.80 | 30.10 | 11.14 | 141.0 | 3.76 |
| BL1222 | 12.64 | 14.02 | 18.54 | 5.60 | 36.20 | 12.74 | 186.0 | 4.83 |
| BL1422 | 14.21 | 15.82 | 20.83 | 6.40 | 42.20 | 14.32 | 235.0 | 7.31 |
| BL1622 | 17.38 | 17.81 | 24.41 | 7.20 | 48.20 | 17.49 | 353.0 | 9.84 |
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL423 | 12.70 | 1/2" | 2x3 |
| BL523 | 15.875 | 5/8" | 2x3 |
| BL623 | 19.05 | 3/4" | 2x3 |
| BL823 | 25.40 | 1" | 2x3 |
| BL1023 | 31.75 | 1 1/4" | 2x3 |
| BL1223 | 38.10 | 1 1/2" | 2x3 |
| BL1423 | 44.45 | 1 3/4" | 2x3 |
| BL1623 | 50.80 | 2" | 2x3 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL423 | 5.08 | 6.48 | 8.02 | 2.00 | 12.00 | 5.13 | 23.5 | 0.84 |
| BL523 | 5.94 | 7.55 | 9.45 | 2.40 | 15.00 | 6.00 | 39.2 | 1.27 |
| BL623 | 7.90 | 9.88 | 12.67 | 3.20 | 18.10 | 7.97 | 63.7 | 2.04 |
| BL823 | 9.48 | 12.10 | 15.30 | 4.00 | 24.10 | 9.57 | 103.0 | 3.20 |
| BL1023 | 11.04 | 14.45 | 18.15 | 4.80 | 30.10 | 11.14 | 141.0 | 4.69 |
| BL1223 | 12.64 | 16.95 | 21.45 | 5.60 | 36.20 | 12.74 | 186.0 | 6.54 |
| BL1423 | 14.21 | 19.10 | 24.10 | 6.40 | 42.20 | 14.32 | 235.0 | 9.06 |
| BL1623 | 17.38 | 21.63 | 28.22 | 7.20 | 48.20 | 17.49 | 353.0 | 12.16 |
For more detailed information regarding clevises and sheaves, please contact
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL434 | 12.70 | 1/2" | 3x4 |
| BL534 | 15.875 | 5/8" | 3x4 |
| BL634 | 19.05 | 3/4" | 3x4 |
| BL834 | 25.40 | 1" | 3x4 |
| BL1034 | 31.75 | 1 1/4" | 3x4 |
| BL1234 | 38.10 | 1 1/2" | 3x4 |
| BL1434 | 44.45 | 1 3/4" | 3x4 |
| BL1634 | 50.80 | 2" | 3x4 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL434 | 5.08 | 8.61 | 10.15 | 2.00 | 12.00 | 5.13 | 35.3 | 1.13 |
| BL534 | 5.94 | 10.05 | 11.95 | 2.40 | 15.00 | 6.00 | 58.8 | 1.69 |
| BL634 | 7.90 | 13.23 | 16.02 | 3.20 | 18.10 | 7.97 | 95.6 | 2.83 |
| BL834 | 9.48 | 16.28 | 19.47 | 4.00 | 24.10 | 9.57 | 155.7 | 4.44 |
| BL1034 | 11.04 | 19.43 | 23.12 | 4.80 | 30.10 | 11.14 | 216.0 | 6.55 |
| BL1234 | 12.64 | 22.75 | 27.25 | 5.60 | 36.20 | 12.74 | 299.0 | 9.10 |
| BL1434 | 14.21 | 25.70 | 30.70 | 6.40 | 42.20 | 14.32 | 387.0 | 11.32 |
| BL1634 | 17.38 | 29.20 | 35.80 | 7.20 | 48.20 | 17.49 | 554.0 | 16.95 |
For more detailed information regarding clevises and sheaves, please contact
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL444 | 12.70 | 1/2" | 4x4 |
| BL544 | 15.875 | 5/8" | 4x4 |
| BL644 | 19.05 | 3/4" | 4x4 |
| BL844 | 25.40 | 1" | 4x4 |
| BL1044 | 31.75 | 1 1/4" | 4x4 |
| BL1244 | 38.10 | 1 1/2" | 4x4 |
| BL1444 | 44.45 | 1 3/4" | 4x4 |
| BL1644 | 50.80 | 2" | 4x4 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL444 | 5.08 | 9.70 | 11.25 | 2.00 | 12.00 | 5.13 | 47.1 | 1.28 |
| BL544 | 5.94 | 11.28 | 13.18 | 2.40 | 15.00 | 6.00 | 78.5 | 1.89 |
| BL644 | 7.90 | 14.91 | 17.70 | 3.20 | 18.10 | 7.97 | 127.0 | 3.18 |
| BL844 | 9.48 | 18.47 | 21.67 | 4.00 | 24.10 | 9.57 | 206.0 | 5.04 |
| BL1044 | 11.04 | 21.69 | 25.37 | 4.80 | 30.10 | 11.14 | 282.0 | 7.48 |
| BL1244 | 12.64 | 25.65 | 30.18 | 5.60 | 36.20 | 12.74 | 373.0 | 10.39 |
| BL1444 | 14.21 | 29.03 | 34.04 | 6.40 | 42.20 | 14.32 | 471.0 | 12.96 |
| BL1644 | 17.38 | 32.94 | 39.55 | 7.20 | 48.20 | 17.49 | 706.0 | 18.97 |
For more detailed information regarding clevises and sheaves, please contact
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL446 | 12.70 | 1/2" | 4x6 |
| BL546 | 15.875 | 5/8" | 4x6 |
| BL646 | 19.05 | 3/4" | 4x6 |
| BL846 | 25.40 | 1" | 4x6 |
| BL1046 | 31.75 | 1 1/4" | 4x6 |
| BL1462 | 38.10 | 1 1/2" | 4x6 |
| BL1446 | 44.45 | 1 3/4" | 4x6 |
| BL1646 | 50.80 | 2" | 4x6 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL446 | 5.08 | 11.80 | 13.35 | 2.00 | 12.00 | 5.13 | 47.1 | 1.65 |
| BL546 | 5.94 | 13.75 | 15.65 | 2.40 | 15.00 | 6.00 | 78.5 | 2.40 |
| BL646 | 7.90 | 18.25 | 21.05 | 3.20 | 18.10 | 7.97 | 127.0 | 4.01 |
| BL846 | 9.48 | 22.50 | 25.70 | 4.00 | 24.10 | 9.57 | 206.0 | 6.32 |
| BL1046 | 11.04 | 26.85 | 30.55 | 4.80 | 30.10 | 11.14 | 282.0 | 9.29 |
| BL1246 | 12.64 | 31.48 | 35.97 | 5.60 | 36.20 | 12.74 | 373.0 | 12.01 |
| BL1446 | 14.21 | 35.63 | 40.62 | 6.40 | 42.20 | 14.32 | 471.0 | 18.00 |
| BL1646 | 17.38 | 40.53 | 47.12 | 7.20 | 48.20 | 17.49 | 706.0 | 24.09 |
For more detailed information regarding clevises and sheaves, please contact.
| CRC Chain No. | Pitch p | Lacing Combination LC | |
|---|---|---|---|
| BL466 | 12.70 | 1/2" | 6x6 |
| BL566 | 15.875 | 5/8" | 6x6 |
| BL666 | 19.05 | 3/4" | 6x6 |
| BL866 | 25.40 | 1" | 6x6 |
| BL1066 | 31.75 | 1 1/4" | 6x6 |
| BL1266 | 38.10 | 1 1/2" | 6x6 |
| BL1466 | 44.45 | 1 3/4" | 6x6 |
| BL1666 | 50.80 | 2" | 6x6 |
| CRC Chain No. | Pin | Link Plate | Min. Tensile Strength acc. to kN | Approx. Mass kg/m | ||||
|---|---|---|---|---|---|---|---|---|
| Diameter d2 | Length L1 | Length L2 | Thickness T | Height H (max.) | Hole Diameter d4 | |||
| BL466 | 5.08 | 13.89 | 15.44 | 2.00 | 12.00 | 5.13 | 69.4 | 1.96 |
| BL566 | 5.94 | 16.23 | 18.14 | 2.40 | 15.00 | 6.00 | 117.4 | 2.80 |
| BL666 | 7.90 | 21.62 | 24.41 | 3.20 | 18.10 | 7.97 | 191.2 | 4.73 |
| BL866 | 9.48 | 26.64 | 29.85 | 4.00 | 24.10 | 9.57 | 309.0 | 7.54 |
| BL1066 | 11.04 | 31.93 | 35.61 | 4.80 | 30.10 | 11.14 | 424.0 | 11.16 |
| BL1266 | 12.64 | 37.29 | 41.81 | 5.60 | 36.20 | 12.74 | 559.0 | 14.58 |
| BL1466 | 14.21 | 42.24 | 47.24 | 6.40 | 42.20 | 14.32 | 706.0 | 22.51 |
| BL1666 | 17.38 | 48.08 | 54.69 | 7.20 | 48.20 | 17.49 | 1060.0 | 28.73 |
For more detailed information regarding clevises and sheaves, please contact
