Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.

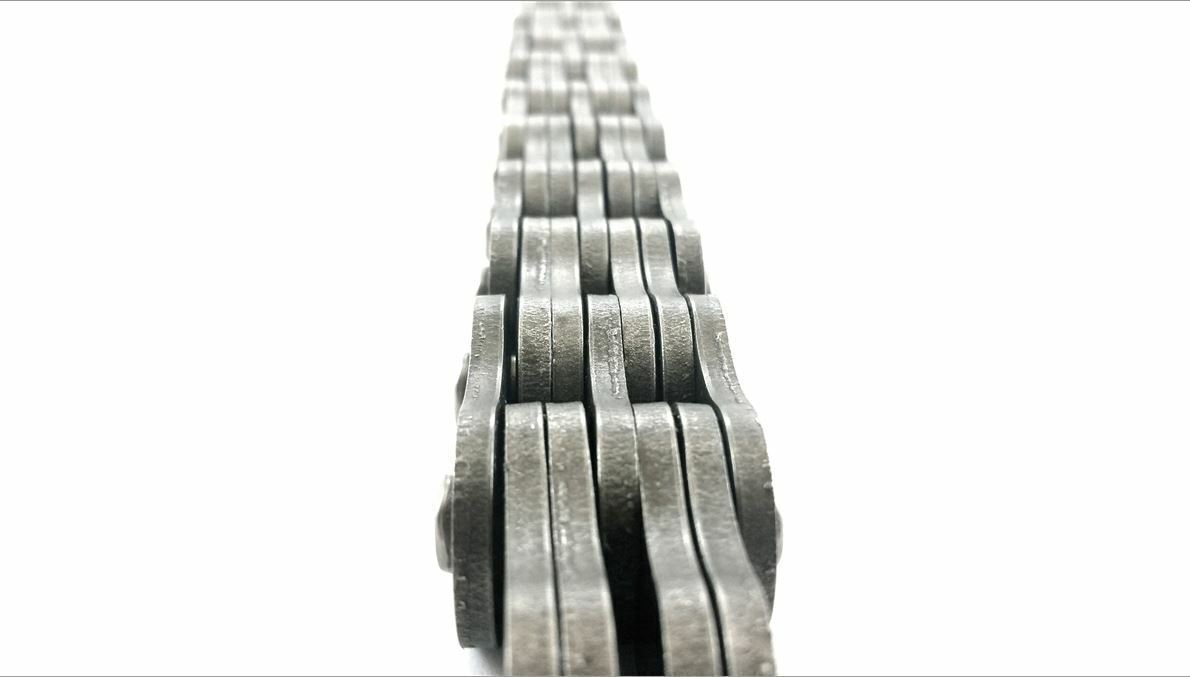

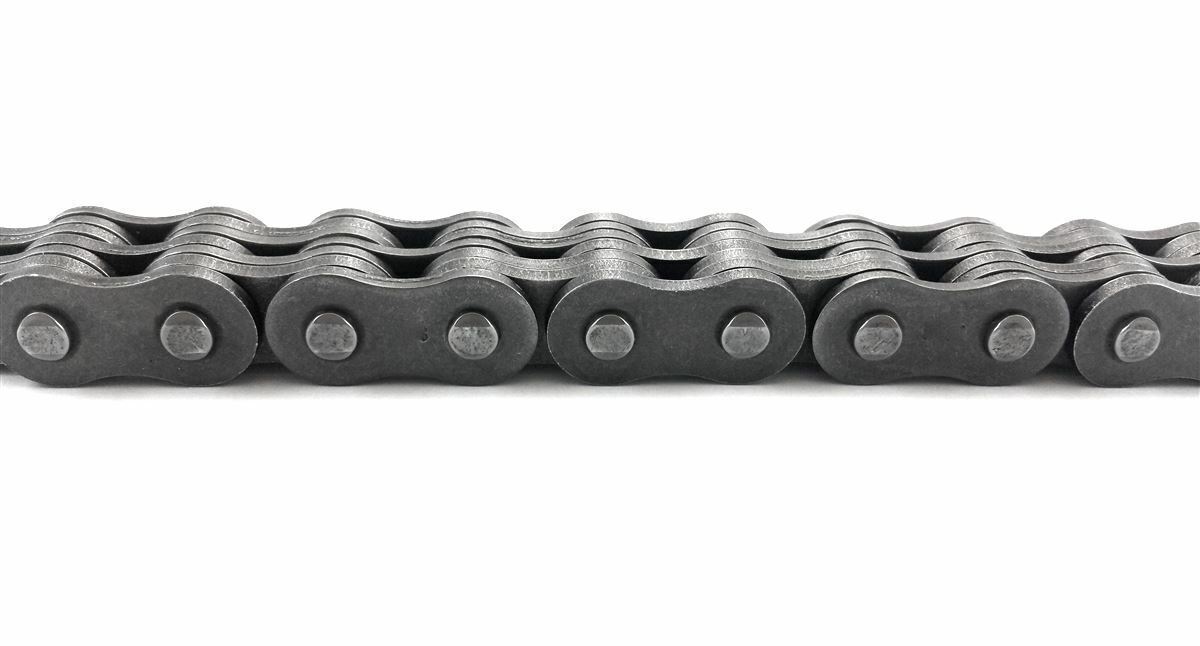

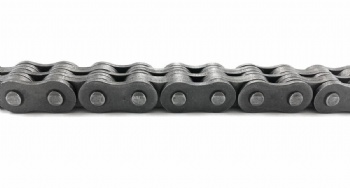

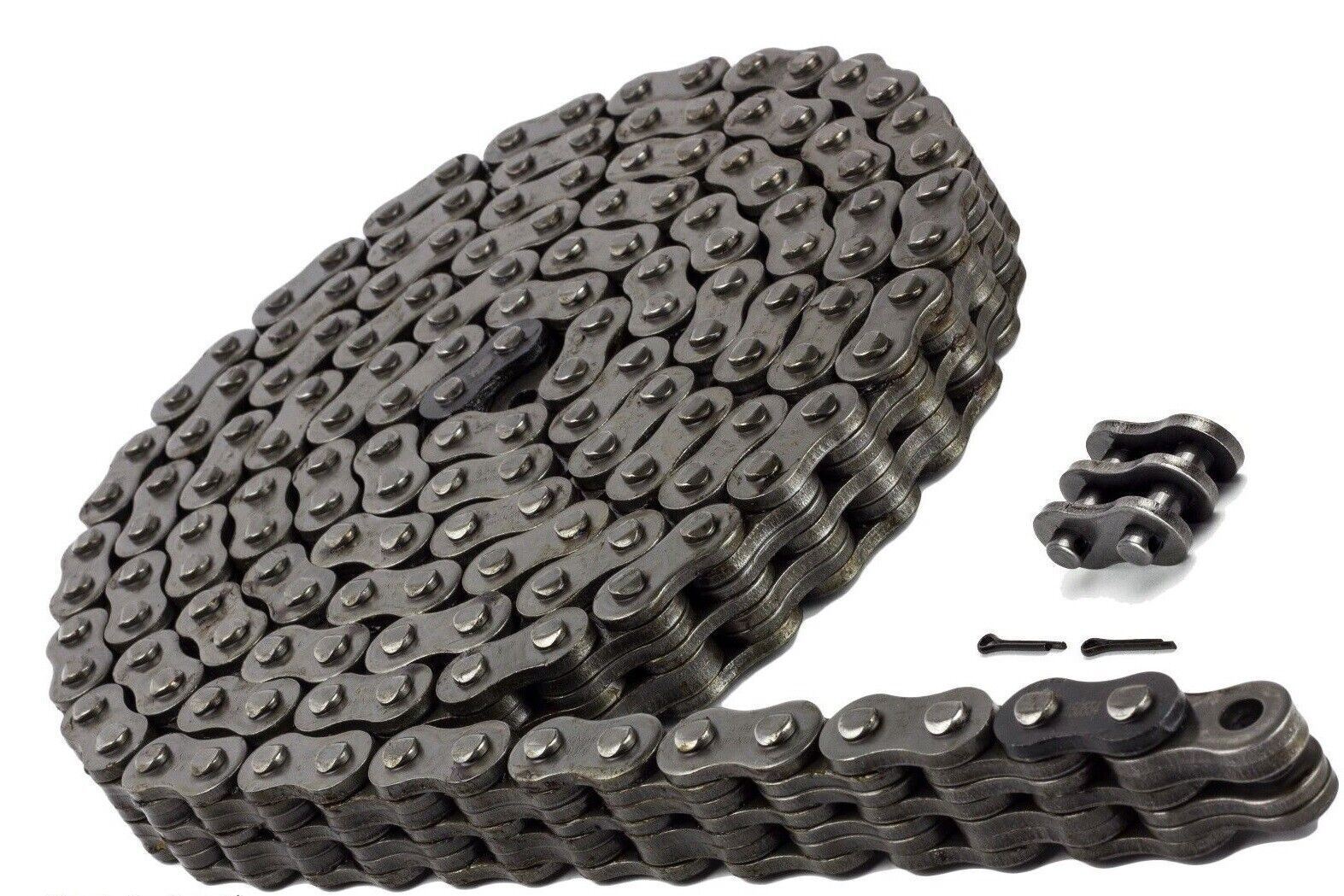

Leaf chain BL534. BL534 leaf chain has a tensile strength of 58.13kN.

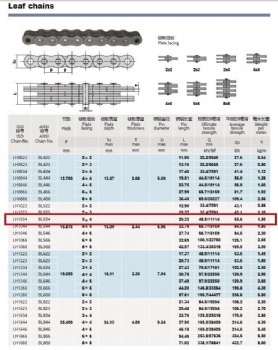

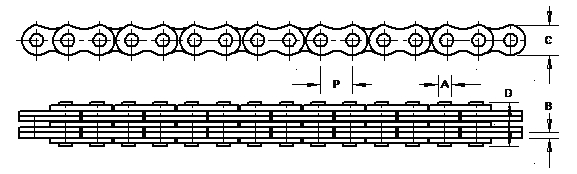

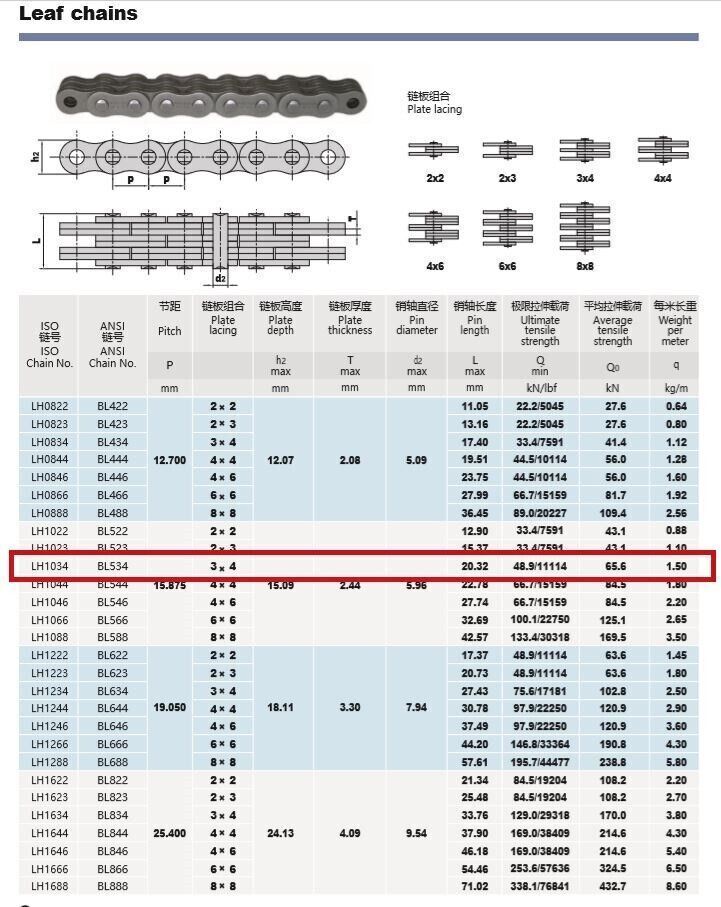

Pitch P Pin Diameter A Plate Thickness B Plate Depth C Pin Length D Weight Breaking Strength Breaking Strength Metric 15.875mm 5.95mm 2.44mm 15.00mm 20.30mm 1.85kg/m 5925kg 58.13kN Imperial ⅝“ 0.234“ 0.096“ 0.591“ 0.799“ 1.244lbs/ft 13062.39lbs Lacing Lacing Style ISO Standard (kN) Maximum working load (kg) ISO Standard Number 3 x 4 3 49 1067kg LH1034
