BL546 Leaf Chain
Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
Leaf chain BL546. BL546 leaf chain has a tensile strength of 77.50kN.

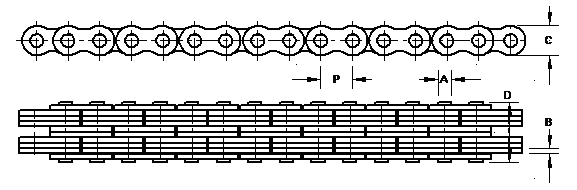

Pitch P Pin Diameter A Plate Thickness B Plate Depth C Pin Length D Weight Breaking Strength Breaking Strength Metric 15.875mm 5.95mm 2.44mm 15.00mm 27.60mm 2.31kg/m 7900kg 77.50kN Imperial ⅝“ 0.234“ 0.096“ 0.591“ 1.087“ 1.553lbs/ft 17411.6lbs Lacing Lacing Style ISO Standard (kN) Maximum working load (kg) ISO Standard Number 4 x 6 5 66.7 1422kg LH1046
