BL644 Leaf Chain
Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
Leaf chain BL644. BL644 leaf chain has a tensile strength of 127.52kN.

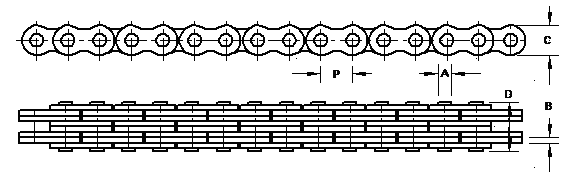

Pitch P Pin Diameter A Plate Thickness B Plate Depth C Pin Length D Weight Breaking Strength Breaking Strength Metric 19.05mm 7.94mm 3.30mm 18.00mm 30.30mm 2.83kg/m 13000kg 127.52kN Imperial ¾“ 0.313“ 0.130“ 0.709“ 1.193“ 1.902lbs/ft 28652lbs Lacing Lacing Style ISO Standard (kN) Maximum working load (kg) ISO Standard Number 4 x 4 12 97.9 2340kg LH1244
