BL823 Leaf Chain
Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
Leaf chain BL823. BL823 leaf chain has a tensile strength of 103.00kN.

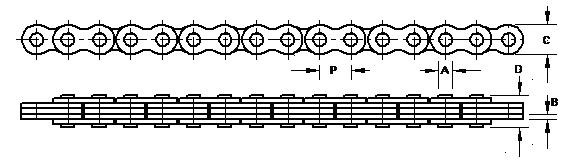

Pitch P Pin Diameter A Plate Thickness B Plate Depth C Pin Length D Weight Breaking Strength Breaking Strength Metric 25.40mm 9.53mm 4.09mm 24.10mm 24.70mm 3.08kg/m 10500kg 103.00kN Imperial 1“ 0.375“ 0.161“ 0.949“ 0.972“ 2.07lbs/ft 23142lbs Lacing Lacing Style ISO Standard (kN) Maximum working load (kg) ISO Standard Number 2 x 3 1 85 1890kg LH1623
