BL634 Leaf Chain
Series BL-LH: BL-LH series (Leaf Heavy) chain, manufactured according to ISO4347, DIN8152, ANSI B29.8 and NFE26107, is the only leaf chain that is constructed from specific leaf chain components. BL-LH series leaf chain is heavier duty chain than AL and EL-LL series and so is the most common chain used for forklift trucks, lifting and materials handling equipment.
Leaf chain BL634. BL634 leaf chain has a tensile strength of 95.64kN.

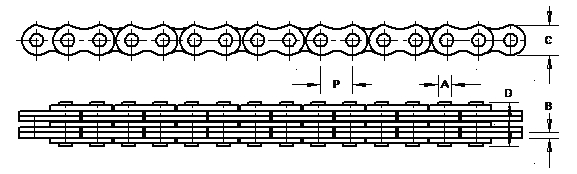

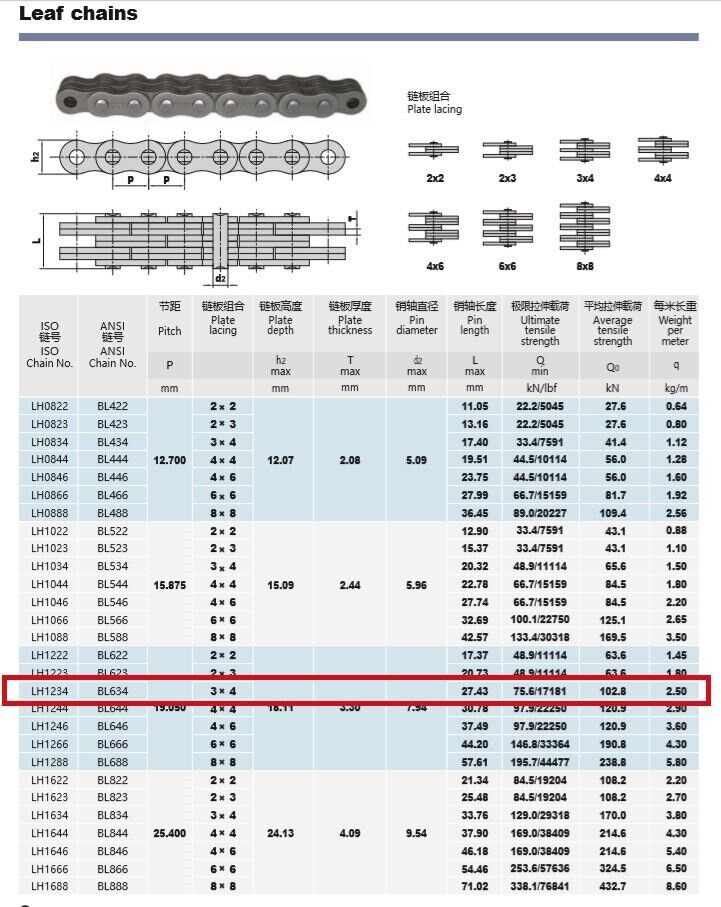

Pitch P Pin Diameter A Plate Thickness B Plate Depth C Pin Length D Weight Breaking Strength Breaking Strength Metric 19.05mm 7.94mm 3.30mm 18.00mm 26.90mm 2.62kg/m 9750kg 95.64kN Imperial ¾“ 0.313“ 0.130“ 0.709“ 1.059“ 1.761lbs/ft 21489lbs Lacing Lacing Style ISO Standard (kN) Maximum working load (kg) ISO Standard Number 3 x 4 3 76 1755kg LH1234
